Wolf Pitts Pro

Wolf Pitts Pro.jpg


AIRCRAFT  DETAILS

REGISTRATION — VH-PVB

MANUFACTURER — STEVE WOLF FROM WOLF AIRCRAFT

POWERPLANT — 1X LYCOMING IO-540 6 CYLINDER (400HP)

SPAN — 5.9M

LENGTH — 6.2M

CRUISE SPEED — 185KTS (340KM/HR)

MAX SPEED — 242KTS (414KM/HR)

RANGE — 500NM (926KM)

WEIGHT (EMPTY) — 1200lbs

RATE OF CLIMB — 4000FT/MIN

ROLL RATE — 380 DEG/SEC

G LIMITS — +10/-10 G

BUILD NUMBER — 001

The Wolf Pitts Pro is one of the highest performing aerobatic biplanes in the world, made using the latest design concepts utilising the latest in materials, it was designed and hand built by Steve Wolf from the United States.

Steve Wolf had built his custom wings for the Pitts Series of aircraft. Then built a improved airframe to suit the wings. This aircraft was built for air show pilot Wyche T. Coleman III. When it was put on the market, Wyche would not sell it to anyone, but to the right person with the skills to fly such a powerful aircraft.

VH-PVB is the very first Wolf Pitts and one of only two in existence. Sean D. Tucker has the other with some further modifications, he named his the Oracle Challenger III.

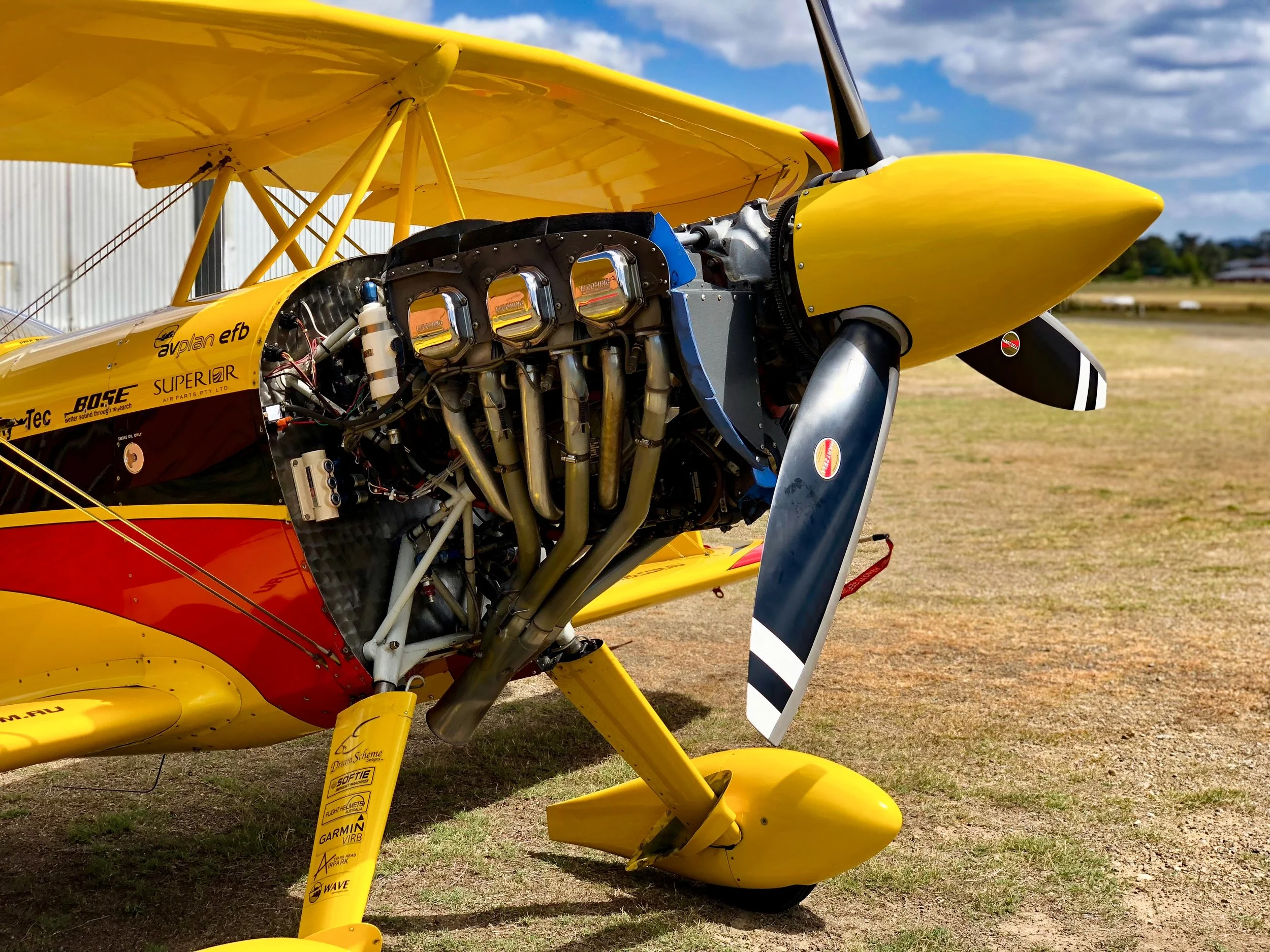

Powered by a 400hp Lycoming engine and a empty weight of 1200lbs (450kg) the Wolf Pitts is capable of a cruise speed of 185kts (340 km/hr) and a top speed of 224kts (414 km/hr).

With four ailerons that span almost the entire length of the wings, the Wolf Pitts has a dizzying roll rate of over 360 degs per second! It is truly a unique aircraft designed for one purpose – aerobatics!
